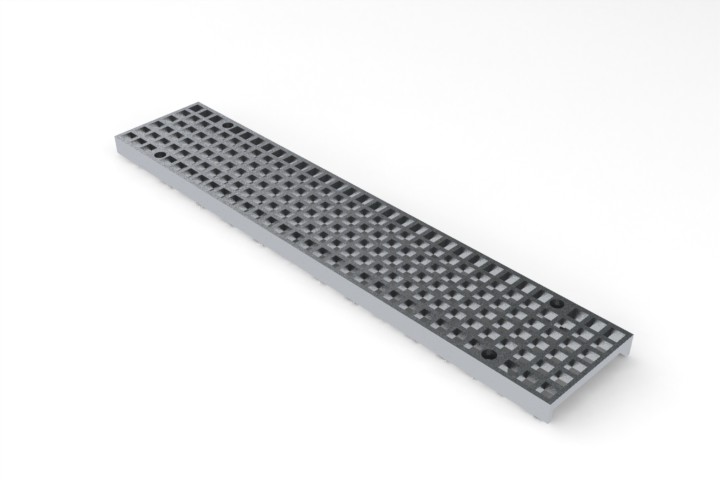

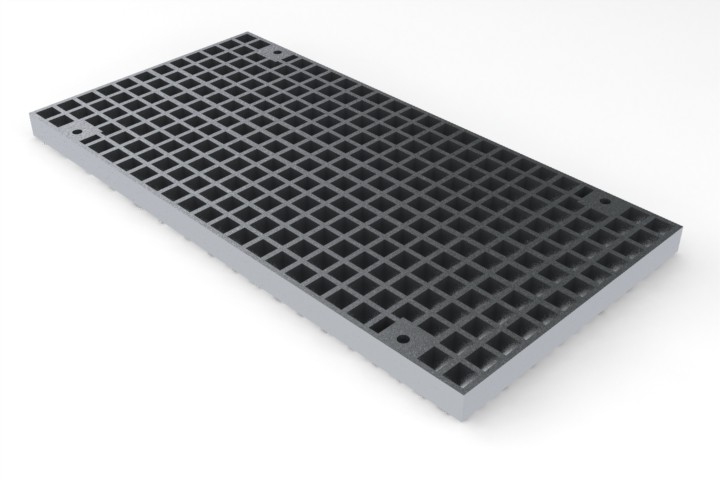

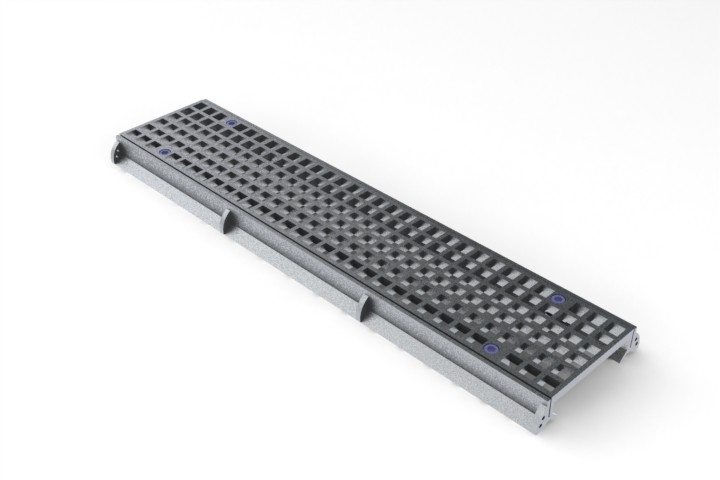

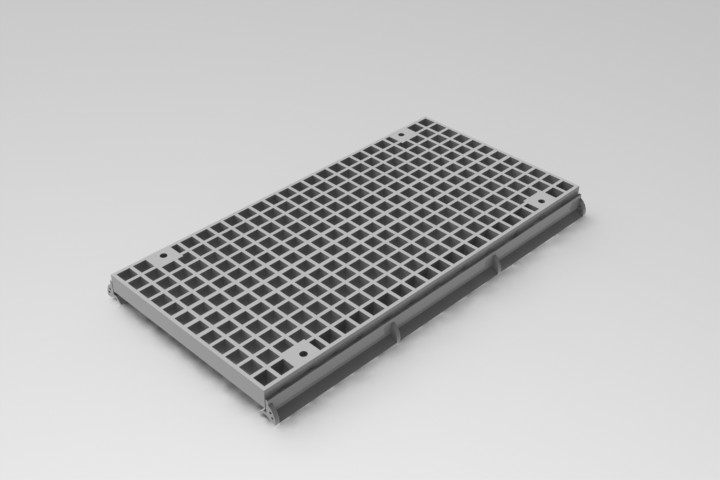

Fuminas check grills are suitable for parking lots, driveways, industries, gas stations and gutters. They help in capturing water and give good finishing, with the continuity of the mesh. They have self-aligning system at 45 ° to prevent cracks and cracks in concrete. Made with nodular iron FE 50007 - Classes B125 and C250 -, they serve spans of 200 to 1000 mm. They conform to the standards of accessibility, with frames of 20 x 20 mm. So do not lock wheelchairs, heeled shoes, baby strollers and more. They also meet the standards NBR 10160 and EN 124.
| INTERNAL WIDTH / WIDTH CM | CM LENGTH | HEIGHT CM | RESISTANCE KG |
|---|---|---|---|
| 20 / 15 | 100 | 5 | 12500 |
| 25 / 20 | 100 | 5 | 12500 |
| 30 / 25 | 100 | 5 | 12500 |
| 40 / 35 | 100 | 5 | 12500 |
| 50 / 45 | 100 | 5 | 12500 |
| 60 / 55 | 100 | 5 | 12500 |
| 80 / 75 | 100 | 5 | 12500 |
| 100 / 95 | 100 | 5 | 12500 |
